Jira Align
Jira Align import is available on Jira Cloud
On this page:
Jira Align access
If you would like to import Jira Align custom fields please enable the import in advanced settings and define Jira connector Id there as well:
[jira.align] enable = true align_jira_connector_id = 1
Please check the Jira connector ID in Align Jira Settings page.

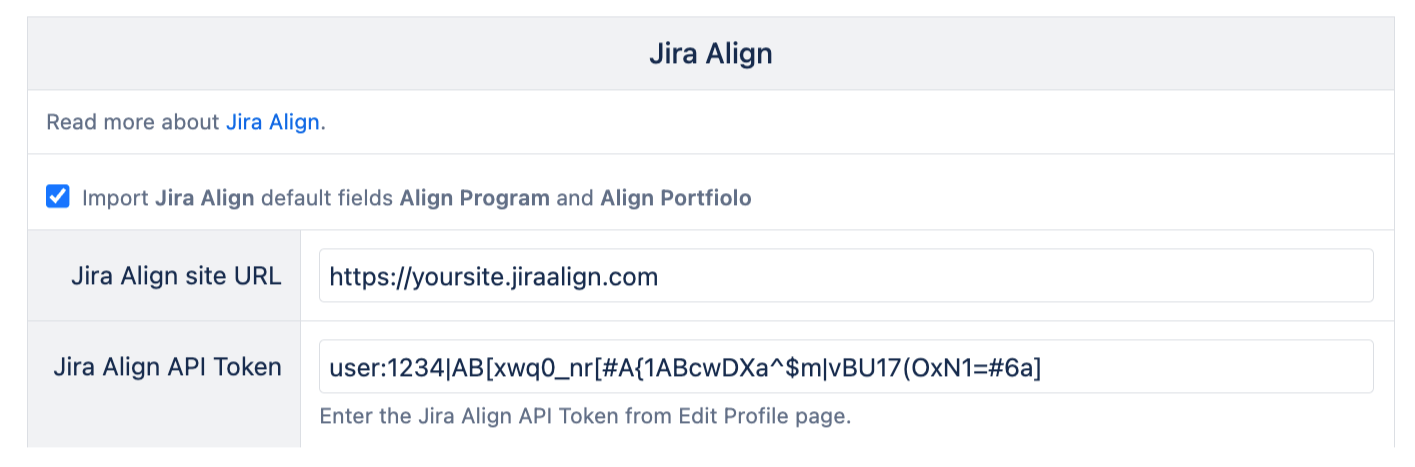

After advanced settings are updated, you would like to select Jira Align custom fields for import in Jira import options for each account where you would like to import Jira Align. Select Import Jira Align default fields and add Jira Align site URL and Jira Align API token. You can generate Api Token (API 2.0 Token) in Align from Edit Profile page.
eazyBI by default will import Align Programs mapped to account selected projects and Align Portfolios of those Programs.

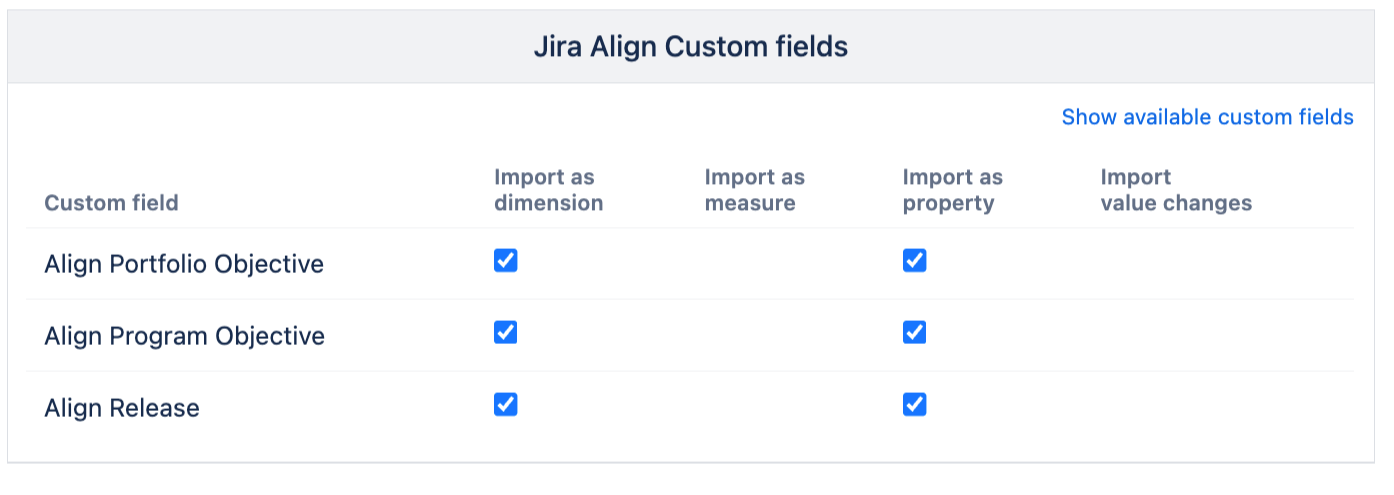

You can import additional Jira Align custom fields as well. You can select Program Objectives, Portfolio Objectives to import linked objectives for imported programs and portfolios. You can also import Align Release mapped to Features in Align as well. Please click on Show available custom fields if you do not see the Align custom field selection after adding Align credentials.
The custom field names in Align might differ. The custom field name matches the platform object name in Align. Please check the Administration > Platform Terminology page in Align for a reference.
Custom fields Align Program, Align Portfolio, Align Program Objectives, and Align Portfolio Objectives are project specific custom fields. Align Release is epic (Align feature) related custom field. Any issue in the hierarchy will be counted for related project or epic custom field.
Dimensions
The following Jira Align data related dimensions are available.
Align Program | List of programs mapped to imported projects. All issues will be counted for a program mapped to a project. |
|---|---|
Align Portfolio | List of portfolios mapped to imported programs. All issues from programs will be counted for portfolios. |
Align Program Objective | List of objectives of imported programs. All issues from programs will be counted for objectives |
Align Portfolio Objective | List of objectives of imported portfolios. All issues from portfolios will be counted for objectives |
Align Release | List of releases planned for imported epics. All epic child issues will be counted for epic release. |
Properties
Additional predefined properties are available.
Align Program | Project property Align Program. Works for Project dimension selected project. |
|---|---|
Align Portfolio | Project property Align Portfolio. Works for Project dimension selected project. |
Align Program Objective | Project property Align Program Objective. Works for Project dimension selected project. |
Align Portfolio Objective | Project property Align Portfolio Objective. Works for Project dimension selected project. |
Issue Align Release | Issue property Align release. Works for Issue dimension selected epic (Align feature) issue. |
Additional properties are imported for Align dimensions. If you would like to add those properties to reports, would like to define a new user-defined or report-specific calculated measure for any imported align dimension property using this formula example:
[Align custom field name].CurrentHierarchyMember.Get('Property name')
--get end date of Align portfolio objctive
[Align Portfolio Objective].CurrentHierarchyMember.Get('End date')
Here is the list of avaialbel properties accessible for Align dimensions.
Align Program | Property 'Portfolio' represents Program Portfolio ID |
|---|---|
Align Program Objective | Proeprty 'Program' represents Program ID of objective Property 'Start initiation date' represents Start initiation date of objective Property 'End date' represents End date of objective Property 'Target completion date' represents Target completion date of objective Property 'Portfolio ask date' represents Portfolio ask date of objective |
Align Portfolio Objective | Property 'Portfolio' represents Portfolio ID of objective Property 'Start initiation date' represents Start initiation date of objective Property 'End date' represents End date of objective Property 'Target completion date' represents Target completion date of objective Property 'Portfolio ask date' represents Portfolio ask date of objective |
Align Release | Property 'Portfolio' represents Portfolio ID of release |
Property 'Start date'represents Release start date | |
Property 'End date' representes Release end date |
