Zephyr Squad Test Management for Jira
eazyBI for Jira
Zephyr Squad - Test Management for Jira provides a full-featured and sophisticated test management solution all inside Jira.
Zephyr Squad for Jira and Jira Cloud is an app developed by SmartBear.
On this page:
Data Import
Data Import in Data Center version

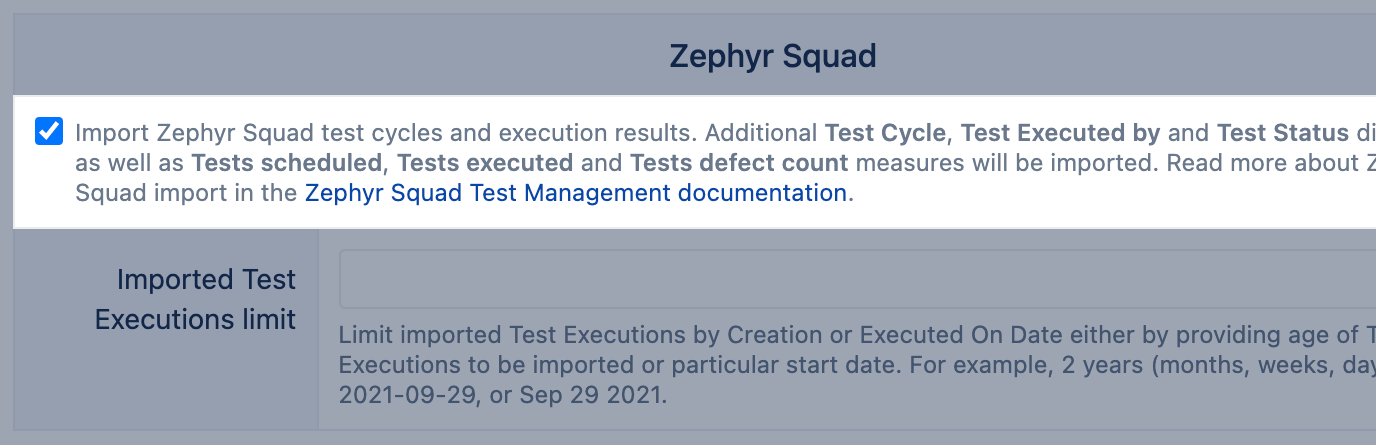

If you have installed Zephyr Squad - Test Management for Jira Data Center then in Jira import options section Add-ons you will see an option Zephyr Squad. In the section select the checkbox and after the next data import, Zephyr Squad specific measures and dimensions will be available for your reports.
Data Import in Cloud version
eazyBI supports data import from the legacy Zephyr Squad on Cloud but does not support data import from the new experience Zephyr Squad on Cloud.
Recently, SmartBear has made major changes, offering the new experience Zephyr Squad Cloud, which takes a different approach to test management and uses different data structures. For more details on how both versions differ and how to know which version you have, visit SmartBear documentation: https://support.smartbear.com/zephyr-squad-cloud/docs/en/faq.html.
eazyBI uses API keys to get data from legacy Zephyr Squad Cloud.
- In Zephyr for Jira Cloud, go to section Integrations -> API Keys and generate Zephyr Squad API keys (Secret Key and Access Key). It is essential to generate keys with the same user that will be used for data import in eazyBI. Please see Zephyr Squad documentation for more information on Zephyr Squad API keys.

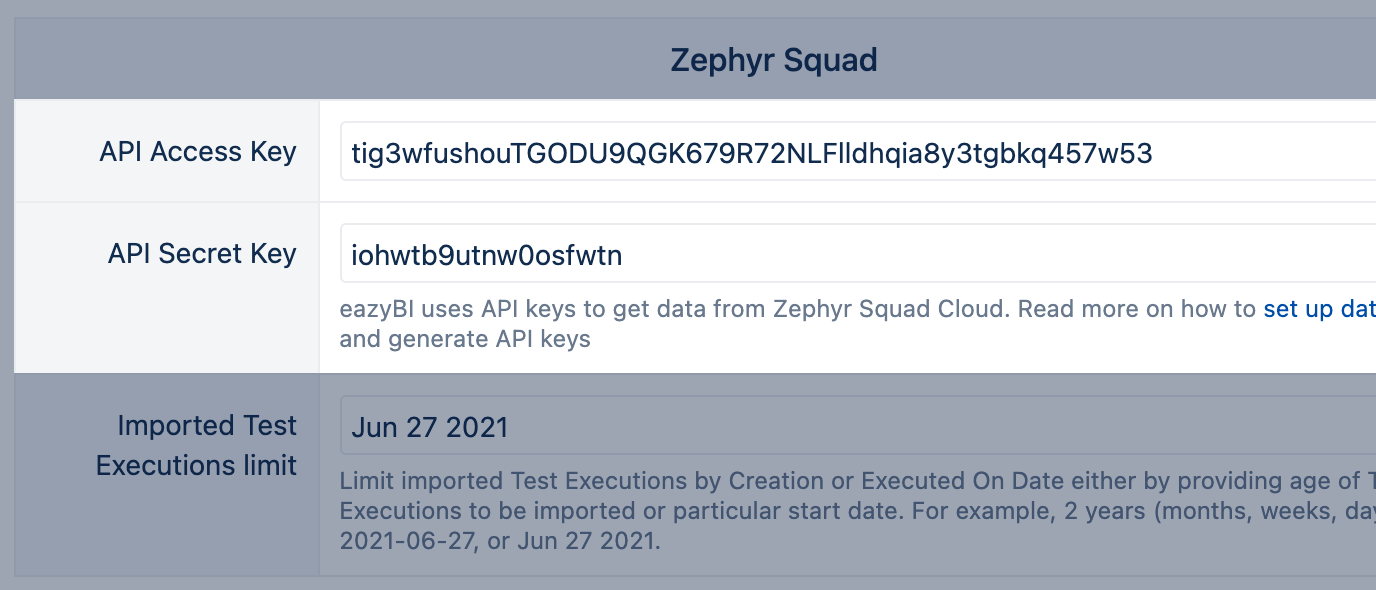

- In eazyBI, Jira import options section Add-ons you will see an option Zephyr Squad which is available when you have installed Zephyr Squad app for Jira Cloud. Enter generated API keys in fields API Access Key and API Secret Key.
After the next data import, Zephyr Squad specific measures and dimensions will be available for your reports.
Limit imported test executions
To reduce import time and the testing data in the cube, you can import only the most recent test executions.
Set a relative time limit for test executions like 5 months to import tests execution from the last three months or a particular date like Jun 14 2020 to set a date range from that date until now. Test executions are imported if they are created (test is added to the cycle) within the time limit (for scheduled test executions) or with execution date within the time limit (for executed or in progress test executions). If there is no limit set, then all test executions are imported.
You can set a limit to all eazyBI accounts through advanced settings.
# parameter name for eazyBI version 6.2 and 6.3 [jira.zephyr] test_executions_limit = "5 months"
Since eazyBI version 6.4, the parameter name is changed to jira.zephyr_squad.
# parameter name starting eazyBI version 6.4 [jira.zephyr_squad] test_executions_limit = "5 months"

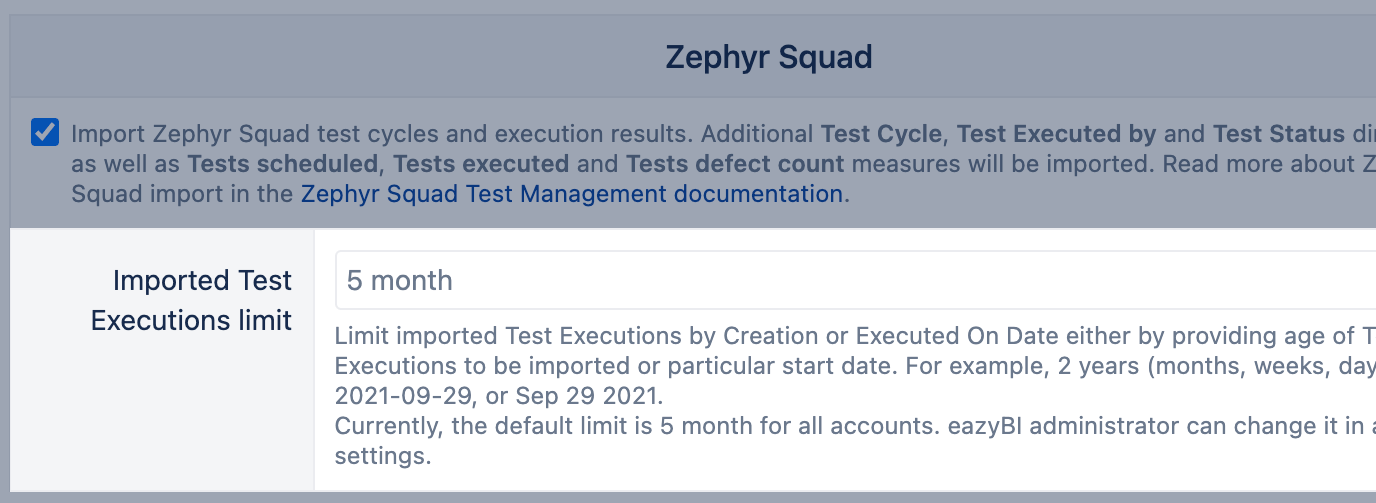

Another option is setting the limit for an individual eazyBI account. In the import options, add the period in the field "Imported Test Execution limit".
If there are import limits applied for the whole eazyBI instance using advanced setting, then the limit in import options won't exceed the limit in advanced settings. In such a way, the overall limits can be set on the eazyBI account, and, in an individual account, this time can be reduced more.
Dimensions
Zephyr Squad tests are issues with a specific type "Test". To represent tests in reports, use Issue dimension.
After the import, the following Zephyr Squad specific dimension will be added:
Zephyr Squad Test Cycle | All test cycles will be shown in this dimension and organized in Project, Version, and Cycle levels. If there are any ad-hoc tests, then (ad hoc) cycle will be shown for the corresponding projects and versions. |
|---|---|
Zephyr Squad Test Executed by | Users who executed tests. |
Zephyr Squad Test Status | Test execution status – by default, there are UNEXECUTED, PASS, FAIL, WIP, and BLOCKED statuses, but, in addition, there can be other user-defined statuses. |
Zephyr Squad Defect | Defect issues added during testing. The dimension is organized in Project and Defect levels. You can add add Issue hierarchy to group defect issues. This option is available on Cloud and starting the version 7.1. |
Zephyr Squad Requirement | Requirements linked to test issues. In the dimension are imported only those issues that are linked to at least one test issue with the link specified in the Zephyr Squad app configuration in Jira. The dimension is organized in Project and Requirement levels. You can add add Issue hierarchy to group requirement issues. This option is available starting the version 7.1. Dimension is not available for the Jira Cloud version. |
Zephyr Squad Test Assignee | User who is assigned to a test execution. |
Measures
Zephyr Squad specific measures can be analyzed by the Zephyr Squad specific dimensions as well as by Issue dimension (where individual tests executions are registered as issues with type "Test") and by other standard dimension members which correspond to the issue with type "Test".
Zephyr Squad Tests created | How many test cases are created. Count of issues with type "Test". Used together with Fix Version dimension, relates to fix version assigned to a Test. On a timeline related to a test creation date. The measure Zephyr Squad Tests created is not related to the test execution dimensions, Zephyr Test Cycle, Zephyr Test Executed by, Zephyr Test Status, Zephyr Defect, Zephyr Test Assignee. To analyze test relation to test cycles and execution results, use execution related measures, like, Zephyr Squad Tests with executions, instead. |
|---|---|
Zephyr Squad Tests scheduled | How many tests are scheduled within selected dimensions but not yet executed. If a test is scheduled for several test cycles, then eazyBI count it for each test cycle. Used together with Zephyr Squad Test Status dimension, relates to status UNEXECUTED. Used together with Fix Version dimension, represents scheduled tests of test cycles for selected fix version. On a timeline related to the date when a test added to a test cycle. |
Zephyr Squad Tests executed | How many tests are executed within selected dimensions. If a test is executed in several test cycles, then eazyBI counts it for each test cycle. Used together with Zephyr Squad Test Status dimension, relates to all statuses except UNEXECUTED. Used together with Fix Version dimension, represents executed tests of test cycles for selected fix version. On a timeline related to a test execution date. |
Zephyr Squad Tests defect count | Linked defect count for each test executions. Includes duplication defects, if defect is linked to the several test executions. Used together with Fix Version dimension, represents defect count by a version of a test cycle. |
Zephyr Squad Test steps | How many test steps are in tests assigned for test cycle. Used together with Fix Version dimension, represents test steps by a version of a test cycle. Used together with Zephyr Squad Test Status dimension, represents test step count by the execution status of a test, not steps. The measure is not available for Jira Cloud version. |
Zephyr Squad Tests with executions | How many tests have at least one test execution (scheduled, in progress or completed). If a tests has several test executions, then eazyBI count it as one test. Used together with Fix Version dimension, represents count of tests by version of test cycle. On a timeline related to the end date of test cycle (scheduled test executions) or test execution date (completed and in progress test executions). |
Zephyr Squad Test Execution count | How many times tests have been executed, are executing or scheduled for test cycle. |
Properties
Also following Zephyr Squad specific properties will be created.
Zephyr Squad Test last executed date | Last execution date for a test issue. This is an issue property and should be used together with Issue dimension. Value does not change according to selected Test Cycle or other dimensions. |
|---|---|
Zephyr Squad Test last executed by | Last executor for a test issue. This is an issue property and should be used together with Issue dimension. Value does not change according to selected Test Cycle or other dimensions. |
Zephyr Squad Test last execution status | Last execution status for a test issue. This is an issue property and should be used together with Issue dimension. Value does not change according to selected Test Cycle or other dimensions. |
Zephyr Squad Requirement status | Current status of the requirement issue. This is a requirement property and should be used together with Zephyr Squad Requirement dimension. Property is not available for Jira Cloud version. |
Zephyr Squad Defect status | Current status of the defect issue. This is a defect property and should be used together with Zephyr Squad Defect dimension. |
Zephyr Squad Defect created | Date and time when defect issue is created. This is a defect property and should be used together with Zephyr Squad Defect dimension. |
Zephyr Squad Defect assignee | User who is assigned to a defect issue. This is a defect property and should be used together with Zephyr Squad Defect dimension. |
Zephyr Squad Test Cycle description | Description of a Zephyr Squad test cycle. This is a test cycle property and should be used together with Zephyr Squad Test Cycle dimension. |
Zephyr Squad Test Cycle build | Build of a Zephyr Squad test cycle. This is a test cycle property and should be used together with Zephyr Squad Test Cycle dimension. |
Zephyr Squad Test Cycle environment | Environment of a Zephyr Squad test cycle. This is a test cycle property and should be used together with Zephyr Squad Test Cycle dimension. |
Zephyr Squad Test Cycle start date | Planned start date for a Zephyr Squad test cycle. This is a test cycle property and should be used together with Zephyr Squad Test Cycle dimension. |
Zephyr Squad Test Cycle end date | Planned end date for a Zephyr Squad test cycle. This is a test cycle property and should be used together with Zephyr Squad Test Cycle dimension. |
Zephyr Squad Test Cycle created by | User who created a Zephyr Squad test cycle. This is a test cycle property and should be used together with Zephyr Squad Test Cycle dimension. |
Issue properties
Zephyr Squad tests as well as requirements and defects are Jira issues and also represented in Issue dimension. You can define a calculated measure to get any issue property that is imported in eazyBI also for Zephyr Squad specific dimensions. To access issue property use function get().
For example, to get priority for Zephyr Squad Requirement, copy a formula of issue property Issue Priority and replace dimension name [Issue] with [Zephyr Squad Requirement] like this:
[Priority].[Priority].getMemberNameByKey(
[Zephyr Squad Requirement].CurrentHierarchyMember.get('Priority ID')
)
Add Issue hierarchy
The option to add issue hierarchy to requirement and defect dimensions is available on Cloud and starting eazyBI version 7.1.
You can group requirements and defects by Epic hierarchy or any other hierarchy you have built for the Issue dimension.
Additional hierarchies for Zeprhy Squad dimensions are defined in eazyBI advanced settings (or site settings for Cloud) and are marked with the setting [[jira.zephyr_squad.custom_hierarchies]]. Provide the dimension name for which to enable the hierarchy, the hierarchy name, and the top-level member name. List all hierarchy levels where the bottom level is a requirement/defect issue (sub-task level is not supported).
For example, enable Epic hierarchy for the "Zephyr Squad Requirement" dimension with three hierarchy levels: project of requirement issue, Epic related to requirement issue, and requirement issue.
[[jira.zephyr_squad.custom_hierarchies]]
dimension = "Zephyr Squad Requirement"
hierarchy = "Epic"
all_member_name = "All Requirements by Epics"
levels = [
{name="Project",key_column = "project_key"},
{name="Epic",key_column="epic_key"},
{name="Requirement"}
]
If you already have constructed an additional Issue hierarchy, you can enable it also for requirements and defects dimensions. Suppose you have a Features by Stories hierarchy as described in this example Separate hierarchy level for Story between parent and epic. Specify the dimension name for which to make the hierarchy, the hierarchy name, and the top-level member name. The levels should match the additional issue hierarchy description except for the Sub-task level and no parameters for the lowest (requirement or defect) level.
[[jira.zephyr_squad.issue_hierarchies]]
dimension = "Zephyr Squad Defect"
hierarchy = "Features by Stories"
all_member_name = "All Issues by Features"
levels = [
{name="Feature",key_column="customfield_featuree",issue_type="Feature"},
{name="Epic and risk",key_column="customfield_epice",issue_type="Epic"},
{name="Story",key_column="customfield_storye",issue_type="Story"},
{name="Defect"},
]
You can enable the Plans hierarchy as well. In that case, list all hierarchy levels and parent keys matching the hierarchy configuration in Jira. The example below describes the Plans hierarchy for Initiative → Epic → Story and enables it to "Zephyr Squad Requirement" dimension for Jira Data Center.
[[jira.zephyr_squad.custom_hierarchies]]
dimension = "Zephyr Squad Requirement"
hierarchy = "Plans"
all_member_name = "All requirements by Initiatives"
levels = [
{name="Initiative",key_column = "jpoh_parent_3"},
{name="Epic",key_column="jpoh_parent_2"},
{name="Story"}
]
Sample reports

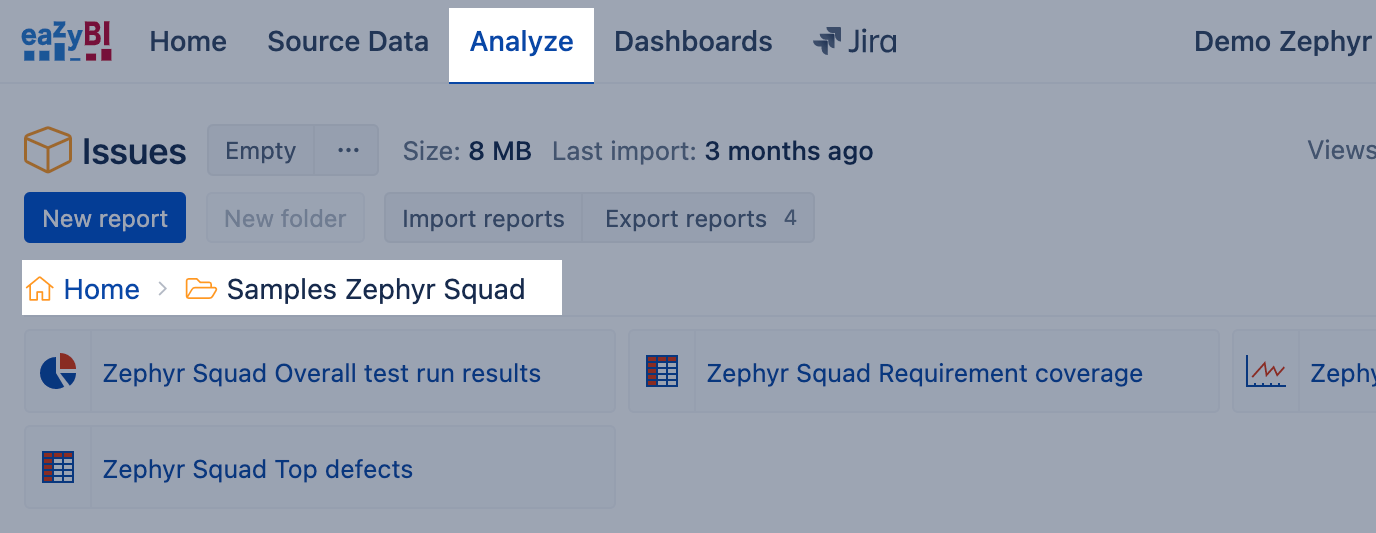

If you selected the Import sample reports option, then additional sample reports are created in the Samples Zephyr Squad folder. Please try these reports to see which measures would be useful for your specific needs. If you want to customize some reports, save them and change the name (as the default sample reports are overwritten during each Jira import).
See also detailed description on how to build non-standard report: Zephyr Squad requirement coverage matrix
