Advanced settings
eazyBI for Jira eazyBI for Confluence

You can use eazyBI advanced settings to add support for additional Jira custom fields as well as change eazyBI reporting engine parameters.

It is recommended that you contact eazyBI support if you test the following example in the advanced settings and it doesn't work as expected.

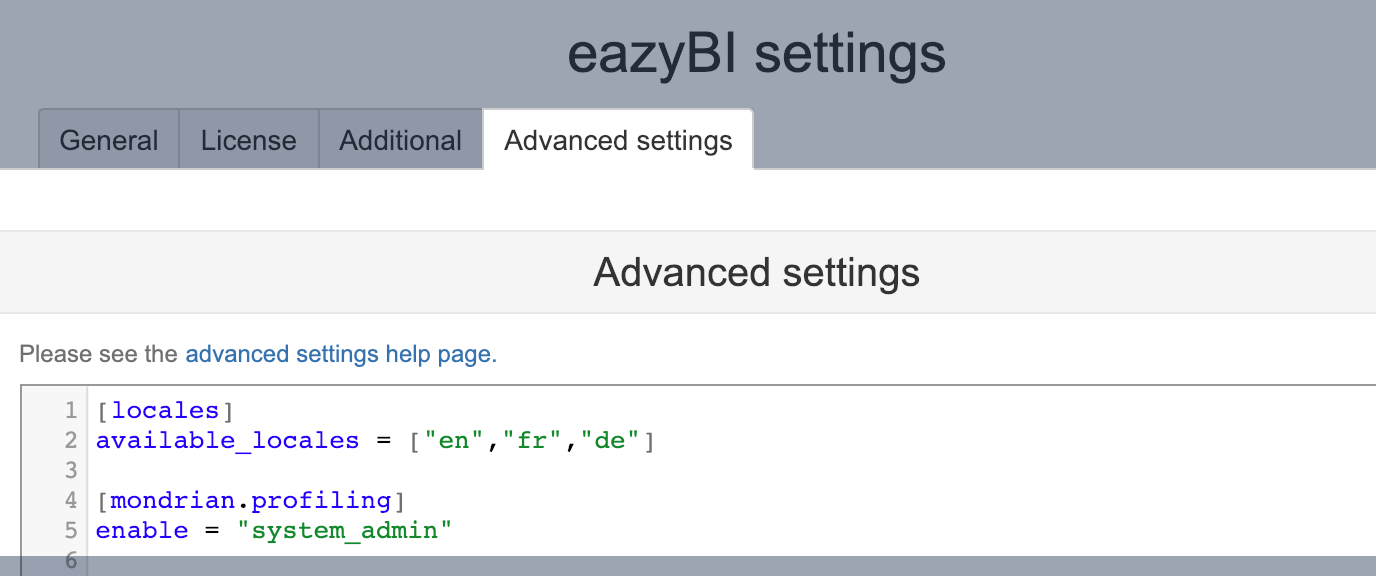

eazyBI advanced settings are defined using the TOML format.

Most of the changes described below require disabling and re-enabling the eazyBI plugin from the Jira system administration page.

On this page:

Additional custom fields

See the Advanced settings for custom fields page with a description of all advanced settings for custom fields.

Performance optimization and tuning

Increase query timeout

By default, there is a 60-second query timeout after which report-generated queries will be canceled. The purpose of this timeout is to prevent overly long execution of overly complex ad-hoc queries (when you join too many dimensions in the rows or columns).

If you have reports that fail with the query timeout error and you need help optimizing them, please export and send the report definition to eazyBI support.

If you still would like to increase this timeout value, then add the following to the advanced settings text area field:

[mondrian.rolap]
queryTimeout = 120

In this example, the query timeout will be increased to 120 seconds.

You can increase the query timeout only if you are using the child process (which is recommended to reduce the impact of complex, long-running queries on the main Jira JVM process). A longer query timeout increases the memory usage of eazyBI. Consider allocating more memory to the eazyBI child process as well.

In eazyBI for Jira Cloud, you can increase the query timeout to 180 seconds.

Increase concurrent report queries

The default number of max concurrent eazyBI report queries is 10. If more MDX queries are made simultaneously, then new queries will wait until the previous query finishes.

If you have a powerful server with many CPU cores and you would like to allow more concurrent MDX queries, then you can increase the max queries value in eazyBI advanced settings with:

[mondrian.rolap]
maxQueryThreads = 20

In this example, the max value will be increased from 10 to 20. Or, if you would like to reduce the number of concurrent MDX queries (to reduce the impact of slow queries on overall Jira performance), you can also reduce this setting.

You can increase the concurrent report queries only if you are using the child process.

We recommend keeping maxQueryThreads within reasonable limits, as too many threads can place a heavy load on the server, especially if reports have complex calculations or long execution times. Increase maxQueryThreads in moderation.

Enable Mondrian to debug logging

If you would like to debug Mondrian MDX queries that are generated by eazyBI or to see all executed SQL statements, then you can enable Mondrian MDX and SQL logging with

[mondrian.log]
"mondrian" = "ERROR"
"mondrian.mdx" = "DEBUG"
"mondrian.sql" = "DEBUG"

You can see the Mondrian debug log in the Jira home directory log/eazybi-mondrian.log file.

Enable Mondrian request profiling

If you want to investigate Mondrian MDX queries and execute SQL statements for individual reports, then you can enable Mondrian request profiling with

[mondrian.profiling]
enable = "system_admin"

You can specify which user role will be able to perform request profiling: system_admin (only Jira admins), admin (only eazyBI admins and system admins), owner (only account owners and system admins), reports_admin (only account report admins and system admins), or user (any user who can create reports).

Then, go to the Analyze tab and Enable profiling in the other report actions in the dropdown. After that, every next request execution will be profiled, and you can view the last profiling result with Show profiling result.

Please send the report definition and profiling result to eazyBI support if you need help with report performance optimization.

Background job queues

There are several background job queues in eazyBI:

You can see the status of background job queues from the eazyBI System administration / Background jobs page. If needed, you can modify the job_queue settings.

By default, one parallel background job can be executed in each queue. If you would like to increase the size of the queue, then specify the size setting for this queue, for example:

[job_queue.application_import]
size = 2

If you would like to limit so that no background jobs are executed during some hours (e.g., during high load hours of Jira), then specify either disabled_hours or enabled_hours in the setting, for example:

[job_queue.application_import]
disabled_hours = "9-18"

or

[job_queue.application_import]
enabled_hours = "0-9,18-24"

In both cases, manual data imports will not be performed from 9:00 to 18:00 (Jira server time zone).

If you change disabled_hours or enabled_hours, it will be checked every 10 minutes.

If you encounter the "Was waiting on import too long time" error in your data imports, it means that the import job was waiting in the queue for more than 1 hour. This can be solved either by configuring eazyBI to run more concurrent imports or by running fewer concurrent imports. If this happens regularly, you can fix it in the following ways.

a) If this happens for both manual and regular imports, increase the queue size if the available server resources allow it. An example for regular imports:
[job_queue.regular_import]
size = 2

b) If this happens only for regular imports, schedule them so that they do not overlap in time.

For advanced Data Center deployments, you can separate report execution from background job processing by adding:

[job_queue]
separate_nodes = true

See Dedicated nodes for Data Center for detailed configuration.

Dedicated nodes for data import jobs are available since eazyBI version 8.2.

Set minimum regular import frequency

Too frequent source data imports can impact eazyBI and Jira performance. You can change the minimum allowed regular import frequency from the default of 10 minutes to a longer interval.

[source_application]
min_regular_import_frequency = "1 day"

This option sets the minimum allowed regular import frequency for all accounts. The parameter will not override saved regular import frequencies.

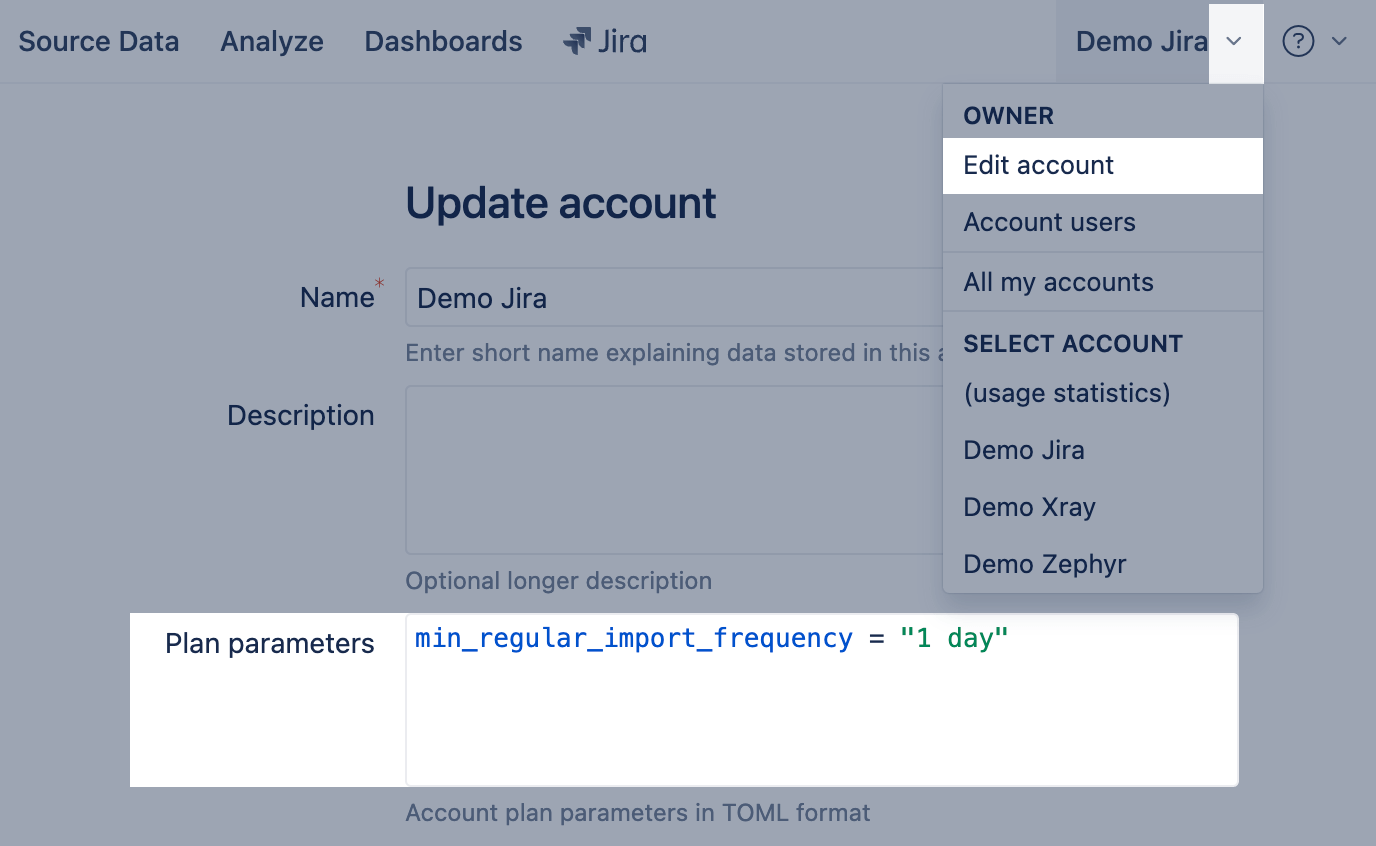

If you would like to enable more frequent imports for specific accounts, you can set plan parameters for all accounts’s log/eazybi-queues.log files.

Enable warnings about surrounding white space trimming

If a custom field value ends with white space, it is not visible in the eazyBI dimension member and can cause a hard-to-trace data mismatch. eazyBI removes these surrounding white spaces from custom field values during Jira data import and logs which custom field and which value were adjusted. Still, if you wish to organize your data and remove the white space in the source, you can enable an import warning message about trimmed white spaces:

[jira]
surrounding_whitespace_warning = true

Disable Confluence Task import

If you do not wish to analyze Confluence tasks or they fail during import, and you wish to disable the task import until the root cause is resolved, you can do this with the following advanced setting:

[confluence]
import_page_tasks = false

After applying the setting, make sure to re-import all data.

Restrict Confluence page views import

If you do not wish to import all page views for Confluence pages, add the advanced settings for page_views_history to enable or restrict confluence page views history import:

[confluence.page_views_history]
enable = true

Local REST API requests

If it is not possible to configure your Jira server to enable local REST API requests then these local REST API calls during Jira issues import can be disabled with

[local_rest_api]
disabled = true

Please note that some eazyBI features may not work properly when local REST API requests are disabled.

 If it is necessary to use a different Jira base URL for local REST API requests (e.g., specify localhost and the corresponding port number), then specify this local REST API base URL:

[local_rest_api]
base_url = "http://localhost:8080"
trusted_base_url = "http://localhost:8080"

Export to PDF using Google Chrome

See Export to the PDF documentation page.

Additional locales

System administrators can enable additional user interface languages (locales). Currently, French, German, and Latvian locales are included in addition to the default English locale. The additional locales can be enabled with:

[locales]
available_locales = ["en", "fr", "de"]

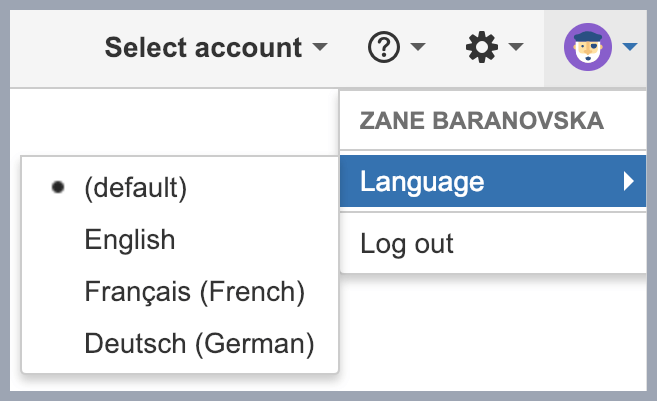

When additional locales are added, then users will be able to select a different language from the top navigation.

If you would like to change the default locale from English to a different language, then add in the locales section, for example:

default_locale = "fr"

If you need help maintaining additional eazyBI user interface languages, then please contact eazyBI support.

Enable incremental data import for User and Report admin roles

Incremental data import option for the Report admin and the User roles available on Cloud, and since eazyBI version 8.2

By default, the Source Data is available only to the account Owner, Data admin, and User admins who can edit the import options. You can also allow people with the Report admin and User roles to access the Source Data section, enabling them to manually initiate incremental data imports without access to edit import options. Add the following settings to enable the functionality:

[account_users]
start_data_import = true

When the settings are applied, the new checkbox Can start data import becomes available on the Account users screen for users and user groups with the Report admin and User roles. By default, the checkbox is not marked.

Enable Comic Style charts

If you want to enable users to switch to funny, comic-style charts, add the comic_style setting.

[ui.comic_style]
enable = true
# If needed, uncomment to make it default for all users.
# default = true

SSRF protection

SSRF (Server-Side Request Forgery) protection helps prevent eazyBI REST API and SQL imports from other hosts on the same local network where the Jira server is running. By default, SSRF protection is disabled.

Enable SSRF protection with:

[ssrf_filter]
enable = true

If you would like to allow REST API or SQL import access for some IP addresses on the same local network, specify allowed_ip_addresses. In addition, you can specify restricted_ip_addresses with additional IP addresses (which are not in the local network) from which REST API import and SQL import should be restricted.

[ssrf_filter]
enable = true
allowed_ip_addresses = ["192.168.1.1", "192.168.8.1"]
restricted_ip_addresses = ["8.8.8.8", "8.8.4.4"]

In addition, you can use your own external proxy and then allow/restrict IP addresses in the proxy configuration. The proxy will only work for REST API import, not for SQL import.

[ssrf_filter]
enable = true
proxy = "127.0.0.1:3128"

Limiting file upload

Specifying what file extensions and content types are allowed to upload as data source files is possible. Settings like this allow only CSV and Excel file upload:

[source_file]
allow_content_types = ["text/plain", "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet"]
allow_extensions = ["csv", "xlsx"]

Additional source applications

You can add authentication keys for Google Sheets and Microsoft 365 Excel, /wiki/spaces/DOCS/pages/4987912342, FreshBooks, and Freshdesk source applications to enable data import from these sources. After adding the authentication keys described below, these source applications will appear in the Source Data tab when adding a new source application.

If you need to add additional source applications in eazyBI for Jira Cloud, add only the following advanced settings and list the additional application types, for example:

[source_application]
application_types = [
 "harvest", "highrise", "zendesk", "freshdesk"
]

To add additional source applications in eazyBI for Jira Datacenter, add the following advanced settings

REST API

REST API additional source application is available by default, but you can change the default configuration parameters through advanced settings.

If the REST API takes longer to return the result, you can change the default timeout parameter for rest_api from 60 seconds to, e.g., 120 seconds:

[source_application.rest_api]
api_timeout_in_seconds = 120

SQL Source

If you import data from a SQL source, you can increase the timeout with the following settings:

[source_application.sql]
connect_timeout = 20
read_timeout = 600
query_timeout = 600

Google Sheets

In eazyBI advanced settings, specify Client ID and Client secret that were created by Google:

[source_application.google_spreadsheets]
client_id = "..."
client_secret = "..."

Harvest

The integration currently works only with supported MySQL and PostgreSQL databases.

[source_application.harvest]
client_id = "..."
client_secret = "..."

Freshbooks

[source_application.freshbooks]
consumer_key = "..."
consumer_secret = "..."

Freshdesk

In eazyBI advanced settings, enable Freshdesk source application:

[source_application.freshdesk]

Zendesk

In eazyBI advanced settings, enable Zendesk source application:

[source_application.zendesk]

Microsoft 365 Excel

Microsoft 365 Excel as a data source has been available since version 9.0.

This is the required setup to use Microsoft 365 Excel as a data source in eazyBI for the Jira app on the Data Center version. It requires registering an application in Microsoft Entra ID (Azure Active Directory) and supplying the OAuth credentials to eazyBI.

  1. Sign in to the Azure portal and open Microsoft Entra ID → App registrations → New registration.
  2. Enter a Name for the application (for example, eazyBI Microsoft 365 Excel).
  3. Under Supported account types, select Accounts in any organizational directory (Any Microsoft Entra ID tenant — Multitenant).
    Personal Microsoft accounts are not supported by this data source; only work or school accounts are supported.
  4. Under Redirect URI, choose the platform Web and enter JIRA_BASE_URL/plugins/servlet/eazybi/source_applications/auth/microsoft365_excel/callback (substitute JIRA_BASE_URL with your Jira server Base URL). Click Register.
  5. On the application Overview page, note the Application (client) ID, this is the value to use as  client_id in eazyBI.
  6. Open Certificates & secrets → Client secrets → New client secret. Set a description and expiration, then click Add. Copy the secret Value immediately (not the Secret ID), this is the value to use as client_secret in eazyBI. The value cannot be retrieved later.

  7. Open API permissions → Add a permission → Microsoft Graph and add the following three permissions:

    API / Permissions nameTypeDescriptionAdmin consent required
    Files.Read.AllDelegatedRead all files that user can accessNo
    Files.Read.AllApplicationRead files in all site collectionsYes
    User.ReadDelegatedSign in and read user profileNo
  8. Click Grant admin consent for <tenant> to grant consent for the Application-type Files.Read.All permissions (it cannot be consented to by individual users). The Delegated permissions can also be pre-consented here, or end users will be prompted on first sign-in. If admin consent is not granted in advance and the application is unverified in the user's tenant, eazyBI will display an admin consent link that the user can forward to their Microsoft 365 administrator.

In eazyBI advanced settings, specify Client ID and Client secret that were created in the Azure portal:

[source_application.microsoft365_excel]
client_id = "..."
client_secret = "..."

After saving the advanced settings, open Source Data in eazyBI and add a new Microsoft 365 Excel source application. Users will be redirected to Microsoft to sign in with their work or school account and authorize access to the requested files.
